Catalina 315



Description

The new 315 continues moving the Catalina brand to a higher level of performance, finish and engineering achievement. The 315 sails into the global marketplace with all the style and refinement of the larger Catalina 5 Series boats.

With core attributes of the award-winning 445 and 355, the 315 includes features that are not found in many of the world’s yachts, yet come standard with the Catalina 5 Series: a watertight StrikeZone™ collision bulkhead, the SecureSocket™ mast support system that affords superior load resolution and watertight integrity; the DeepDefense™ rudder system for failsafe steering, and the T-Beam MastStep™ structure that has all the benefits of a deck-stepped mast and the strength of a keel-stepped mast.

All the best elements of the 5 Series Catalinas are replicated in the 315. You’ll find a bold emphasis on strength, lead keels, sleek low profile cabin design, ergonomically correct cockpits that are optimized for efficiency, with great visibility from the helm. Plus, all the classic warmth and ambience that only a teak interior creates.


Standard Equipment

CONSTRUCTION

  • Hull of Hand-laid Fiberglass with Structural Grid and
  • Fiberglass Hull Liner bonded to the Hull. Vinylester resin barrier coat to resist Osomatic blistering.
  • Deck of Hand –laid cored Fiberglass with a Full
  • Fiberglass Headliner
  • Molded-in Non-skid
  • Lead Fin Keel with Stainless Steel Attaching Bolts
  • Five Year Gel Coat Blister Protection * ( 2 )
  • Five Year Hull Structure Warranty * ( 3 )
  • Molded-In-Gel Coat Waterline, Midwatch Blue
  • Midwatch Blue and Silver Stripes
  • Collision bulkhead at bow with “Strike Zone”

SPARS AND RIGGING

  • 135% Genoa, with U.V, Protection, White
  • Complete Standing and Running Rigging
  • Internal Low-Stretch Dacron Halyards
  • PVC Wiring Conduit with Messenger in Mast
  • Selden In-Mast Furling System; Double Spreader

SAIL HANDLING AND EQUIPMENT

  • ( 2 ) Two-Speed Self Tailing Primary Winches
  • ( 2 ) Two-Speed Self Tailing Mainsheet/Halyard Winches
  • Mid-boom Sheeting with Multi-Purchase Traveler
  • ( 1 ) 10 ” Winch Handle, ball bearing
  • Mainsheet Traveler with Car and Adjuster System Led to Cockpit
  • Headsail Furling Gear
  • Boom Vang, Rigid Adjustable Type
  • Inboard Genoa Tracks
  • Vertical Battens in Mainsail

PROPULSION, STEERING & CONTROLS

  • Single Lever Engine Controls on Pedestal
  • Steering Brake
  • Yanmar ( 3 ) Cylinder Diesel Engine, 21 HP Fresh
  • Water Cooled with Reduction Gear
  • Bronze Propeller, Three Blade
  • Sea Water Filter System for Engine Cooling
  • Instrumented Engine Panel mounted on Edson Pedestal with a S.S. Guard
  • 5 ” Illuminated Compass
  • Emergency Tiller Access and Emergency Tiller
  • 32 ” Stainless Steel Wheel
  • Bilge Blower
  • Hand Laminated Rudder with 316 Stainless Steel Core and Post
  • Extruded Aluminum Toe Rail

PLUMBING SYSTEM

  • Hot & Cold Pressure Water Distribution System
  • Manual Bilge Pump
  • Electric Bilge Pump with Float Switch
  • Marine Head with Holding Tank and Deck Outlet
  • Water Heater with A.C. and Engine Heat
  • Exchange Elements

DECK HARDWARE

  • Comfortable Cockpit with Contoured Coamings
  • Walk Through Stern
  • Transom Boarding Platform
  • Telescopic Stern Boarding Ladder
  • Double Lifelines with Gates Port and Starboard
  • Mooring Cleats, Two Fore and Aft
  • Large Anchor Roller on Foredeck
  • Molded In Anchor Locker for Below Deck Chain and Rode Storage
  • Stainless Steel Handrails on Cabin Top
  • Stern Rail with Observation Seats
  • Removable Helm Seat
  • Hot & Cold Shower Mounted in Transom Boarding Area
  • Line Storage Cleats
  • L.E.D. Cockpit Light
  • Molded In LP Gas Locker with ( 1 ) 10 lb Tank

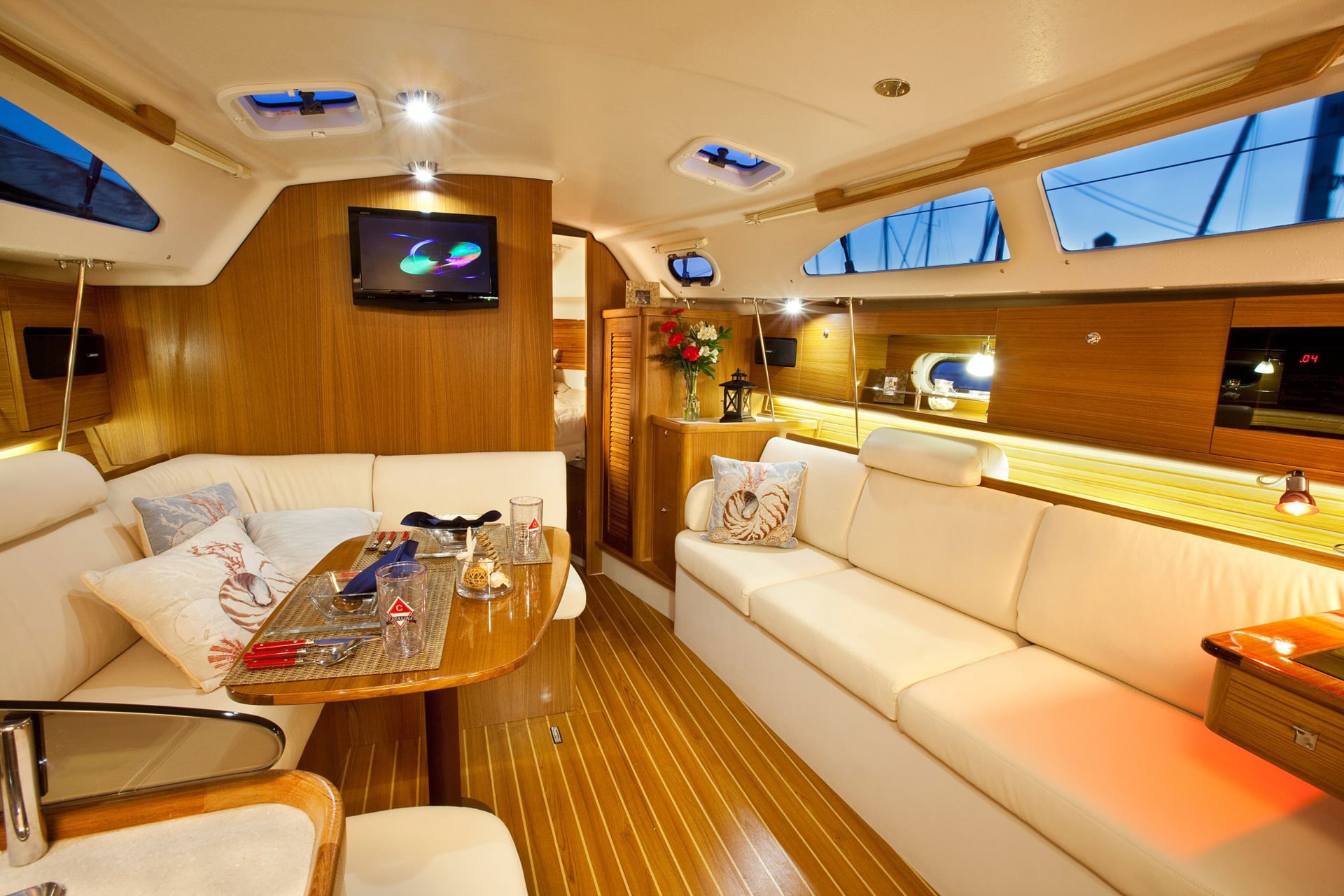

INTERIOR

  • Varnish Finish On Interior Teak
  • Veneer Bulkheads with Solid Teak Trim
  • Solid Teak Trim Doors, Teak Louvers Doors on Cabinets, Cedar lined Hanging Lockers
  • Chart Table with Adjustable Chart Light
  • Teak and Holly Textured Laminate Sole
  • Dining Table
  • Fabric Covered Interior Cushions
  • ( 3 ) Fixed Ports in Hull
  • ( 4 ) 0pening Ports with Screens

GALLEY

  • Refrigeration, D.C. Powered System with Freezer Compartment
  • Stainless Steel Sink, Polished
  • Single Lever Faucet with Pullout Sprayer
  • Large Top Loading Storage Bin with Rack
  • Utensil Drawer
  • Large Storage Cabinets in Galley
  • Two Burner Stove with Oven, Stainless Steel, L.P.G. with Auto Ignition

ELECTRICAL SYSTEM

  • Marine Battery Charger
  • Deck Light and Steaming Light on Mast
  • Anchor Light at Masthead
  • 12 Volt Lighting Throughout
  • Custom 110 Volt AC/12 Volt DC Electric Panel
  • Circuit Breakers for AC Electrical Panel
  • Battery Condition Meter
  • Adjustable L.E.D. Cabin Lights
  • AC Duplex Receptacles Throughout
  • AC Dockside Power with Outlets and Polarity Indicator and Circuit Protection
  • DC Electrical System with Two Batteries, Selector Switch and Panel Circuit Protection
  • ( 1 ) 110V 30 amp Shore Power Cord
  • Galvanic Isolator

Specifications

  • Length Overall:9.49 m 31' - 11"
  • Length of Hull:9.45 m 31' - 0"
  • Length at Waterline:8.08 m 26' - 6"
  • Beam:3.35 m 11' - 7"
  • Mast Height Above Waterline:14.70 m 48' - 3"
  • Draft:Fin Keel 1.91 m 6' - 3"
  • Draft:Wing Keel 1.32 m 4' - 4"
  • Ballast:Fin Keel 1,814 kg 4,000 lbs
  • Ballast:Wing Keel 1,996 kg 4,400 lbs
  • Approx. Basic Weight:Fin Keel 4,627 kg 10,200 lbs
  • Approx. Basic Weight:Wing Keel 4,808 kg 10,600 lbs
  • Engine:3 Cylinder Diesel 16 kw 21 HP
  • Total Water Capacity:102 ltr 27 gal
  • Holding Tank Capacity:64 ltr 17 gal
  • Sail Area:100% Foretriangle 47 sq. m. 506 sq. ft.
  • Sail Area:Standard 135% Genoa 54.72 sq. m. 589 sq. ft.
